Figure 37: Racetrack MM50 40-MeV beam data. Digital: <A HREF="./m50_40_spc.html">UL</A>, <A HREF="./m50_40_ang.html">UR</A>, <A HREF="./m50_40_comp.html">L</A>


next up previous contents
Next: Figure 38: Racetrack Up: Figures: Digital Data Previous: Figure 36: Racetrack

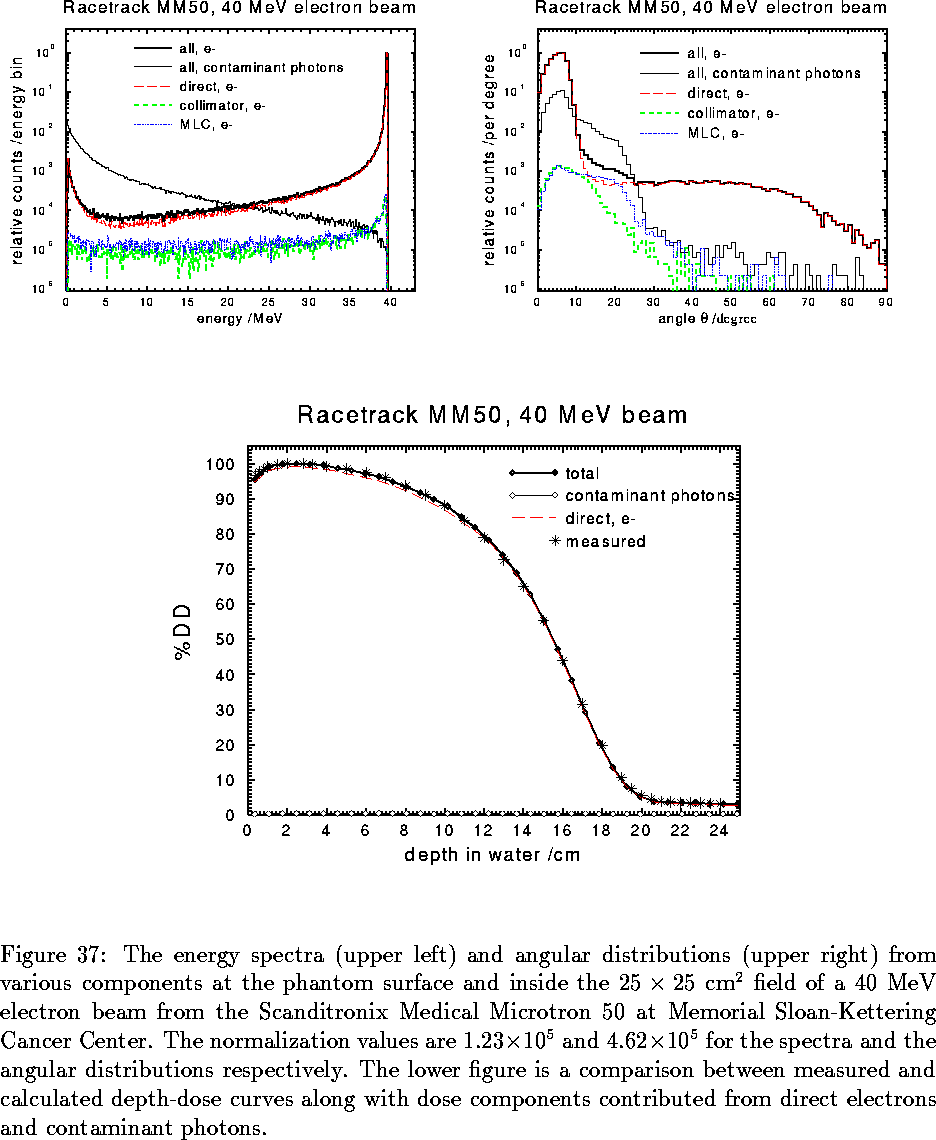

Figure 37: Racetrack MM50 40-MeV beam data. Digital: UL, UR, L
