Figure 38: Racetrack MM50 50-MeV beam data. Digital: <A HREF="./m50_50_spc.html">UL</A>, <A HREF="./m50_50_ang.html">UR</A>, <A HREF="./m50_50_comp.html">L</A>


next up previous contents
Next: Figure 39: Racetrack Up: Figures: Digital Data Previous: Figure 37: Racetrack

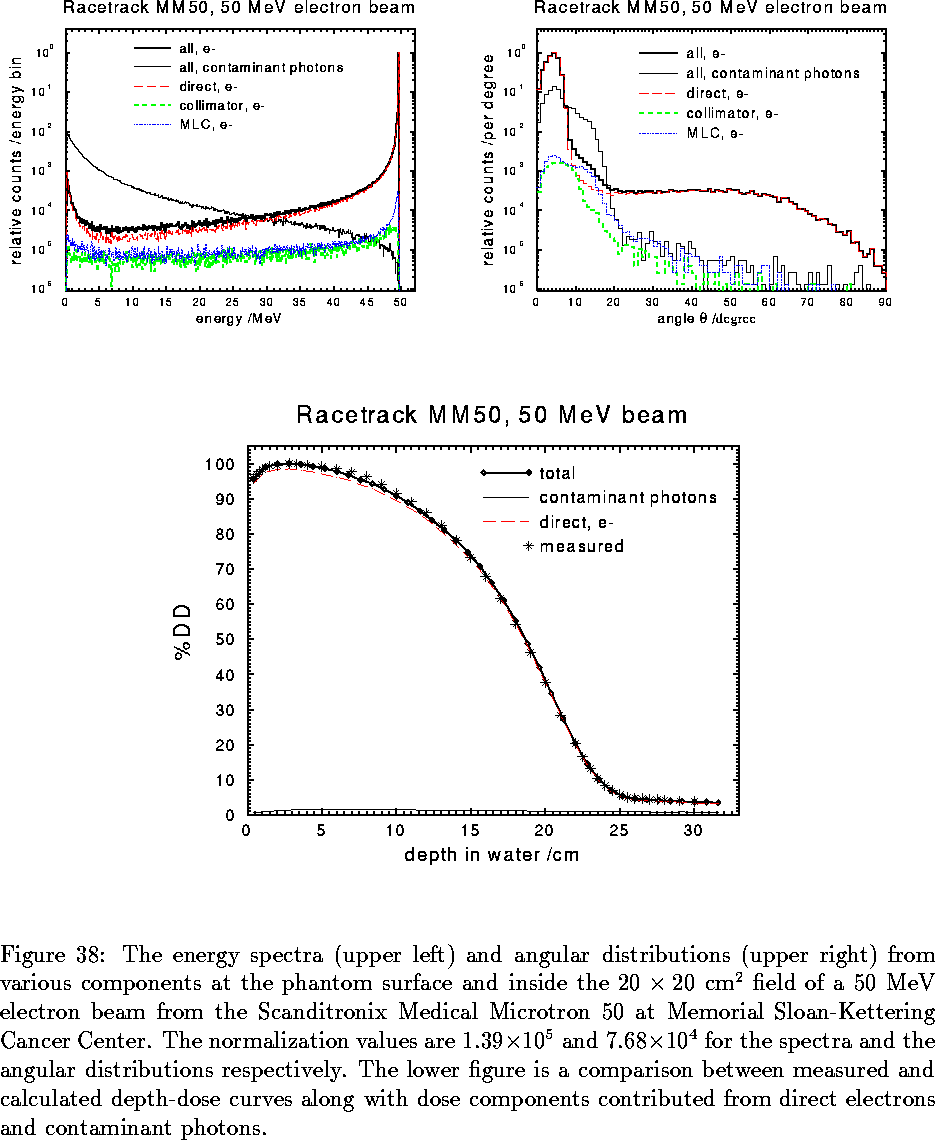

Figure 38: Racetrack MM50 50-MeV beam data. Digital: UL, UR, L
