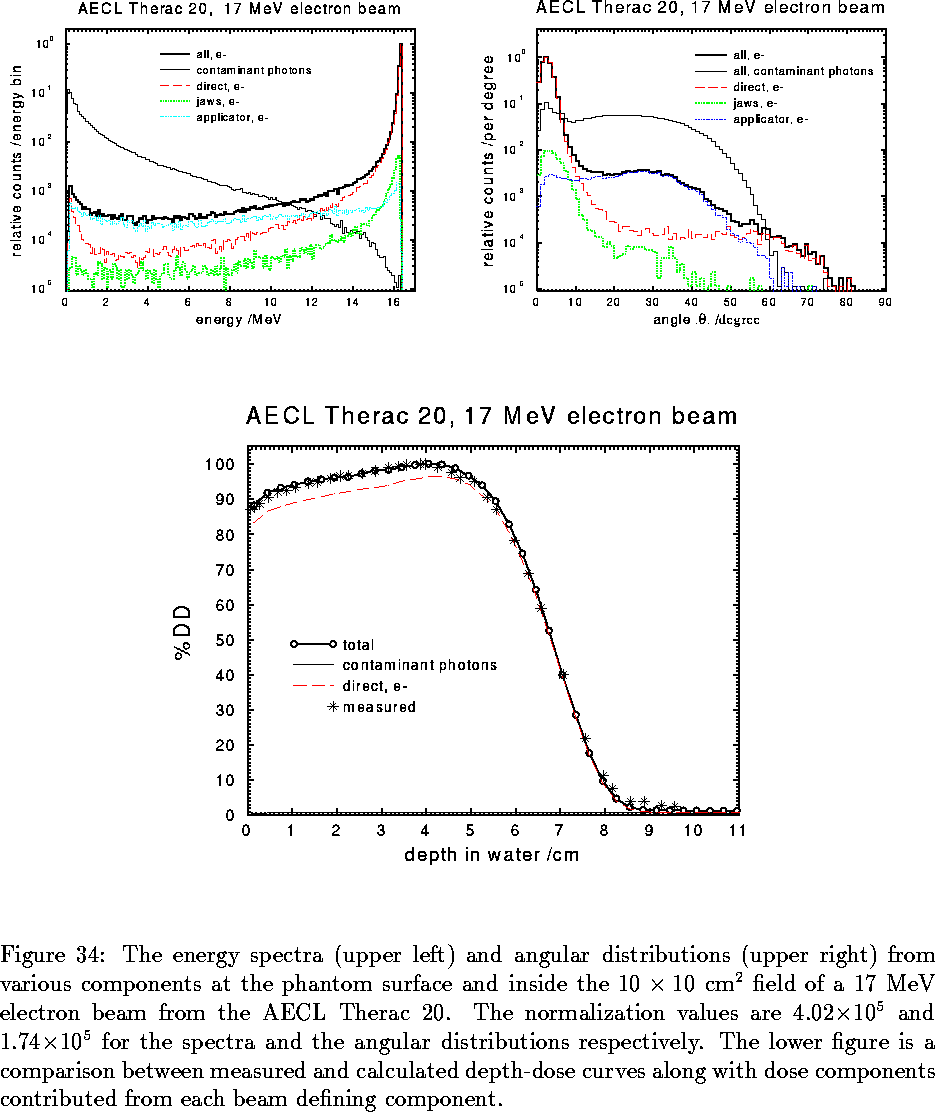

Figure 34: AECL Therac 20 17-MeV beam data. Digital: <A HREF="./t20_17_spc.html">UL</A>, <A HREF="./t20_17_ang.html">UR</A>, <A HREF="./t20_17_comp.html">L</A>


next up previous contents
Next: Figure 35: AECL Up: Figures: Digital Data Previous: Figure 33: AECL

Figure 34: AECL Therac 20 17-MeV beam data. Digital: UL, UR, L
