Figure 27: Siemens KD2 11-MeV beam data. Digital: <A HREF="./kd_11_spc.html">UL</A>, <A HREF="./kd_11_ang.html">UR</A>, <A HREF="./kd_11_comp.html">L</A>


next up previous contents
Next: Figure 28: Siemens Up: Figures: Digital Data Previous: Figure 26: Siemens

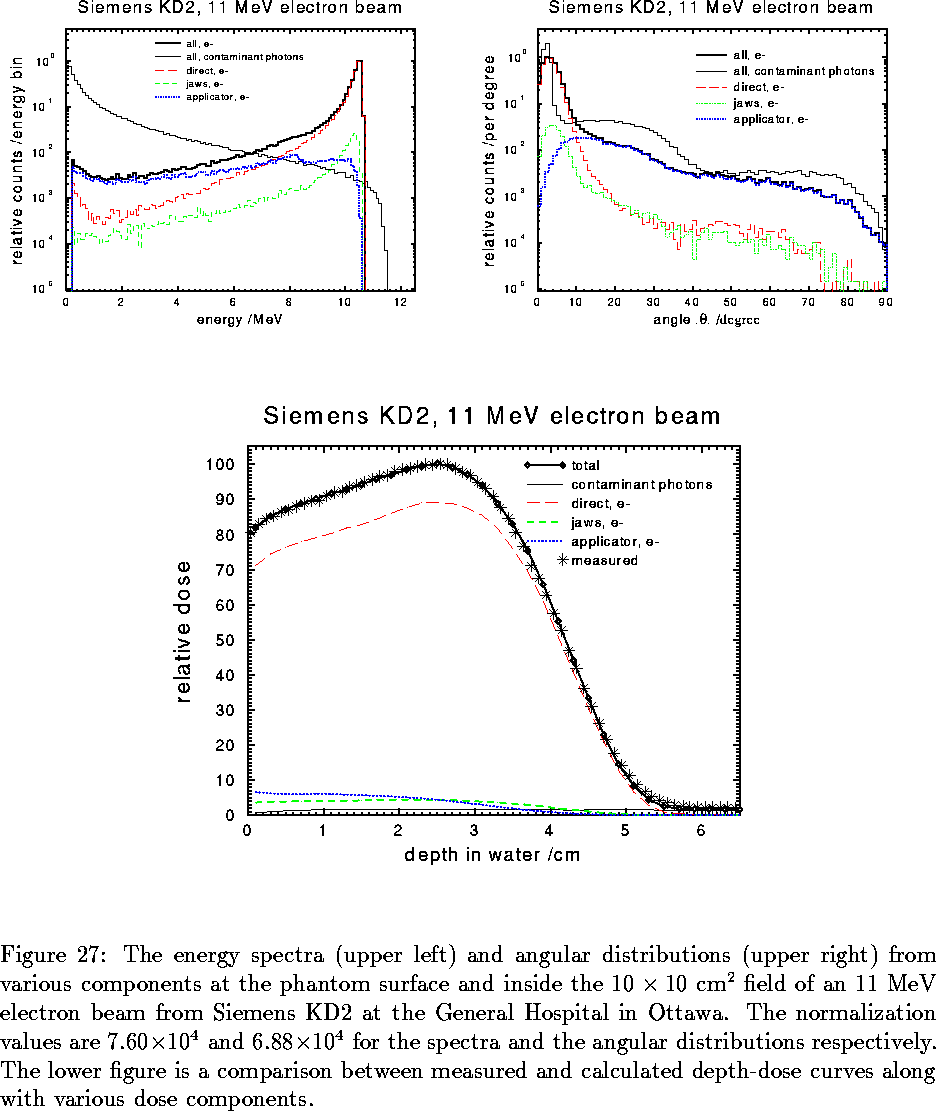

Figure 27: Siemens KD2 11-MeV beam data. Digital: UL, UR, L
