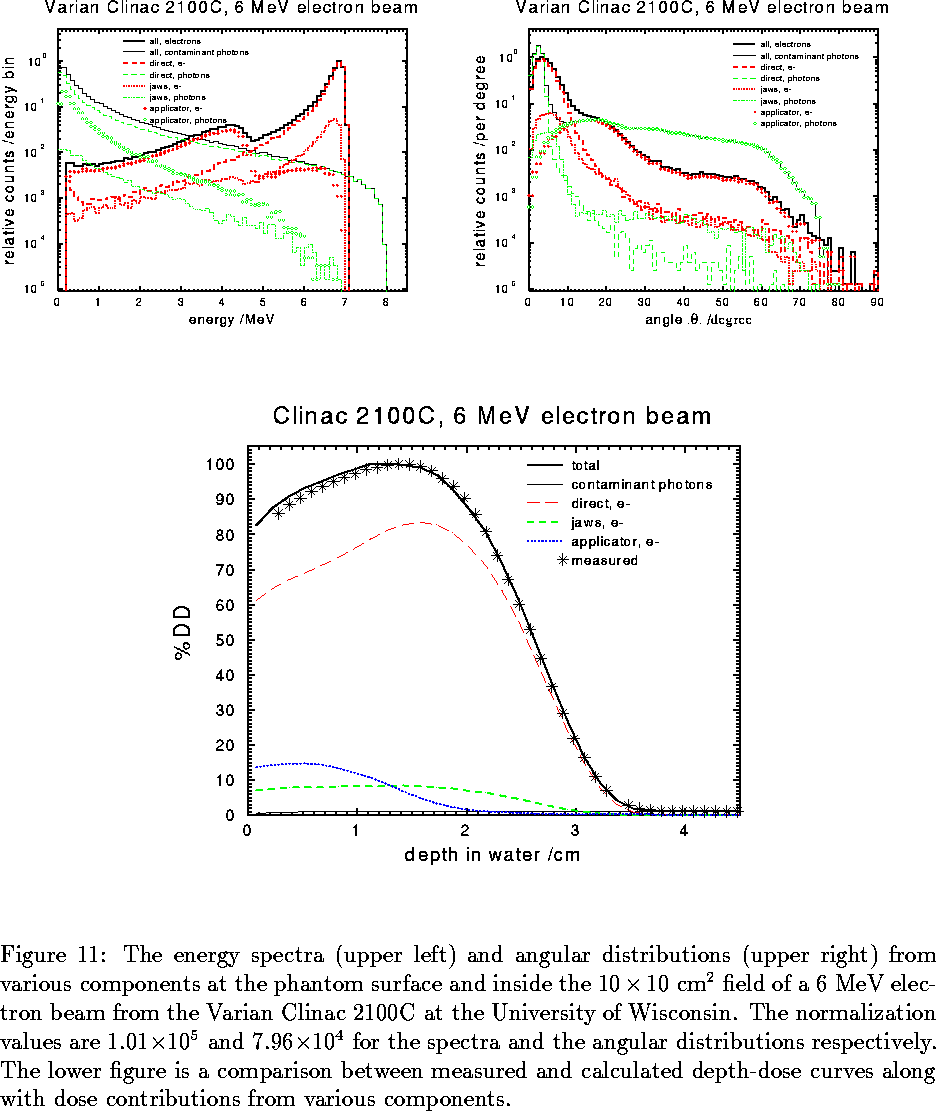

Figure 11: Clinac 2100C 6-MeV beam data. Digital: <A HREF="./clc_06_spc_all.html">UL</A>, <A HREF="./clc_06_ang.html">UR</A>, <A HREF="./clc_06_comp.html">L</A>


next up previous contents
Next: Figure 12: Clinac Up: Figures: Digital Data Previous: Figure 10: NRC

Figure 11: Clinac 2100C 6-MeV beam data. Digital: UL, UR, L
