| Drift length of TPC: |
15 cm |
| Double GEM tower, spacing: |
|
| Voltages: |
5220 V (drift); 3150 V (GEM) |
| Drift field: |
138 V/cm |
| Gas: |
P10 ArCH4 (90/10) |
| drift velocity
(cm / musec) |
5.5 |
transverse diffusion
(mm / sqrt(cm)) |
see below |
longitudinal diffusion
(mm /
sqrt(cm)) |
see below |
| data runs |
1-8 |
| number of good events |
~50000 |
Data Simulated November 2003

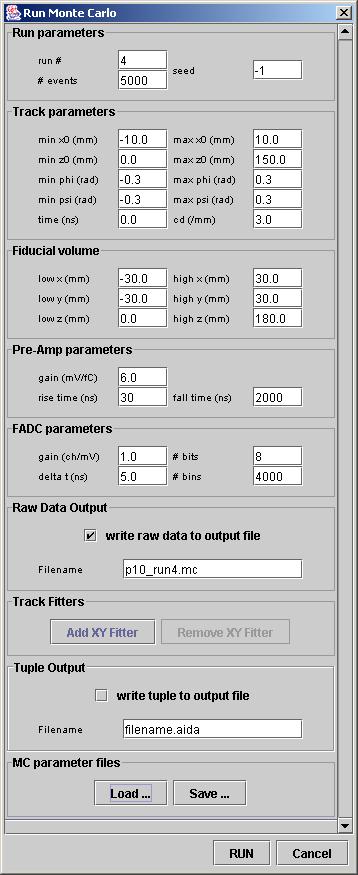

Monte Carlo Settings

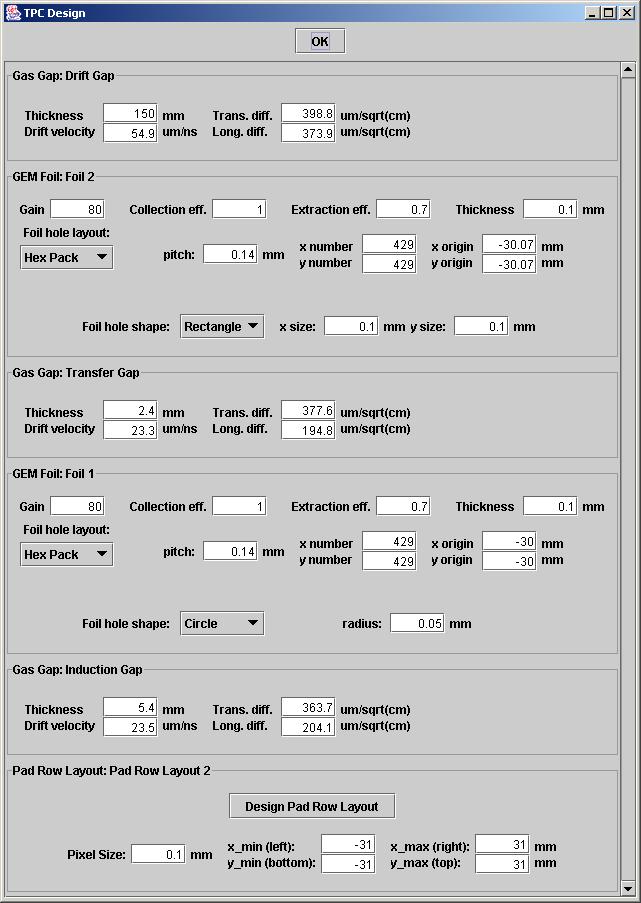

Settings of the TPC used in the simulation
showing diffusion, drift velocities
