Micromegas Results - October 2004

Micromegas results from X-ray experiment performed on September 29, 30 and October 1st, 2004.

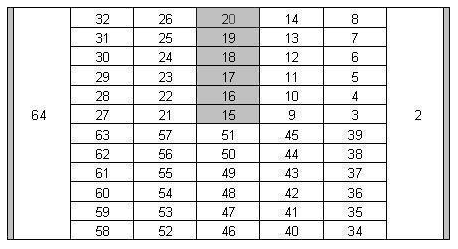

Bias curves, residuals and resolution of pads 16-19 - New - November 5th
Bias Curve for Pads 16, 17, 18, 19

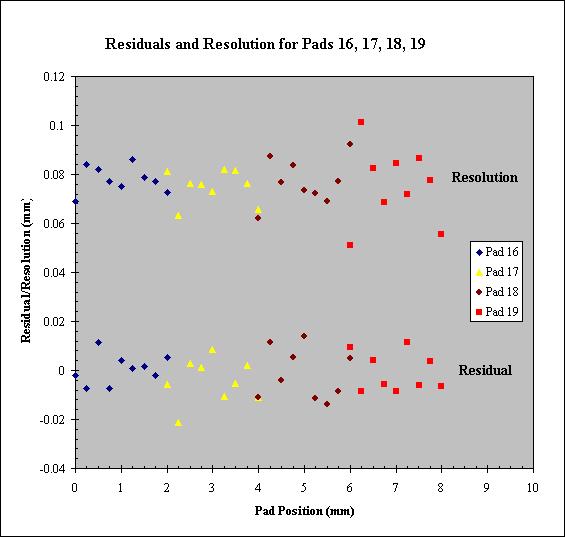

Residuals and Resolution for Pads 16, 17, 18 ,19

Averaged PRF, residuals and resolution plots

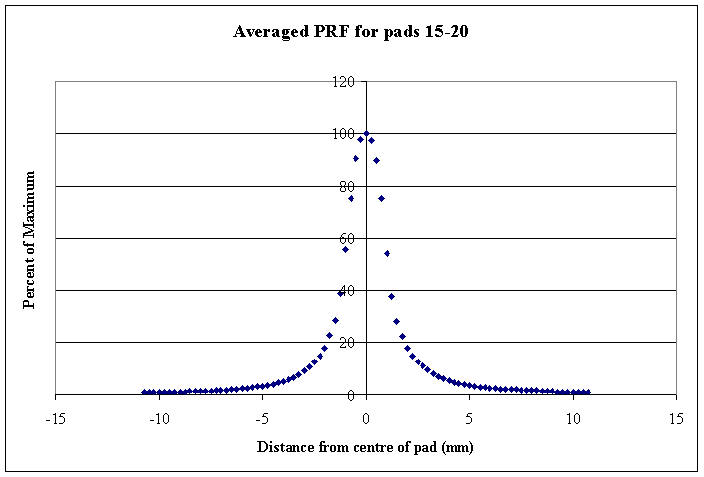

Average PRF for pads 15-20
Residual & Resolution Plots Obtained using the Average PRF

Pad centroid amplitudes
Pad 16, 17, 18, 19

Pad Response Functions for pads 15-20

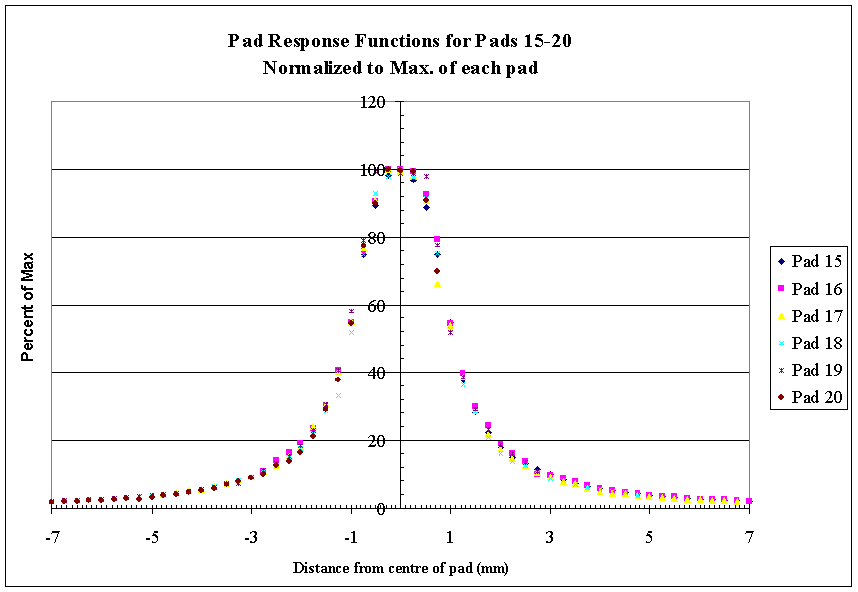

Pad Response Functions for Pads 15-20 Normalized to Max. of Each Pad
Pad Response Function - Normalized to Max. of Each Pad -Pad 15, 16 ,17 ,18 ,19 , 20
