Figure 30: AECL Therac 20 6-MeV profiles. Digital: <A HREF="./t20_06_spc.html">UL</A>, <A HREF="./t20_06_ang.html">UR</A>, <A HREF="./t20_06_comp.html">L</A>


next up previous contents
Next: Figure 31: AECL Up: Figures: Digital Data Previous: Figure 29: Siemens

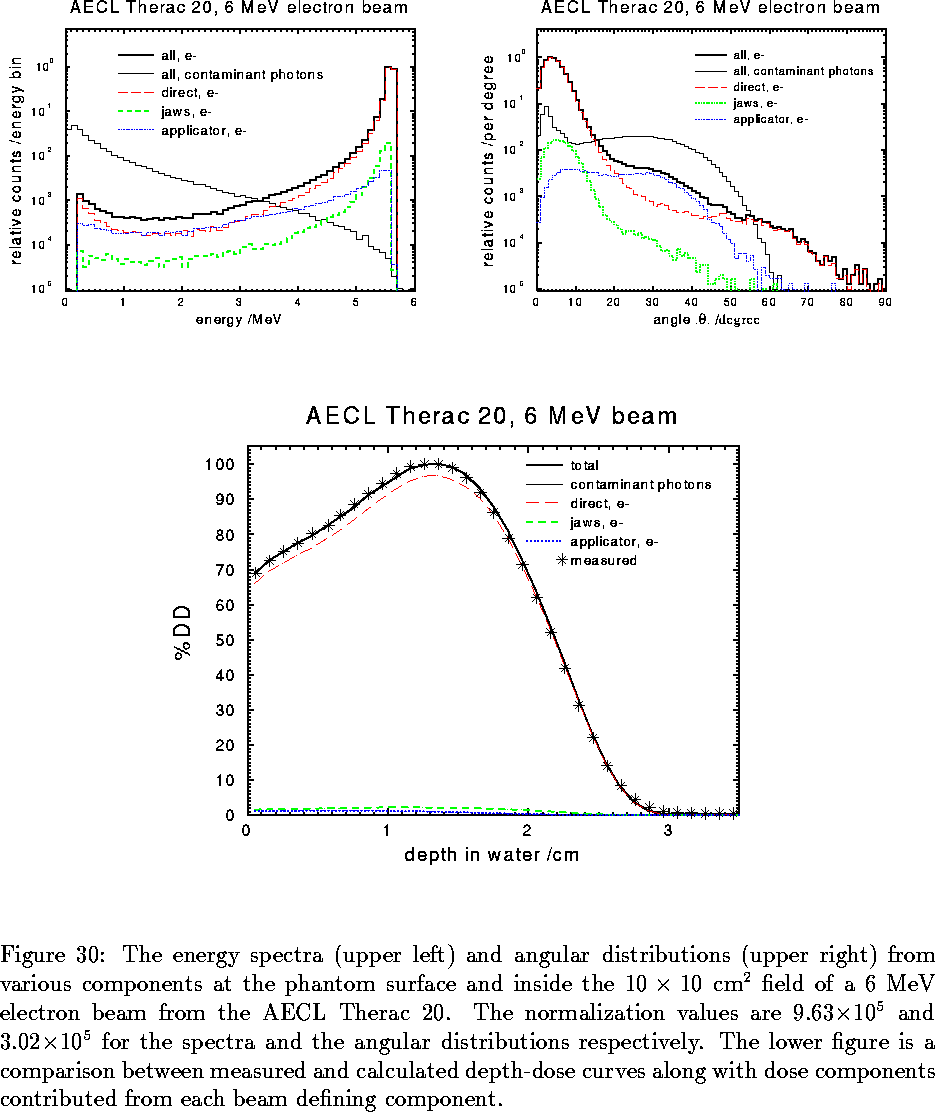

Figure 30: AECL Therac 20 6-MeV profiles. Digital: UL, UR, L
