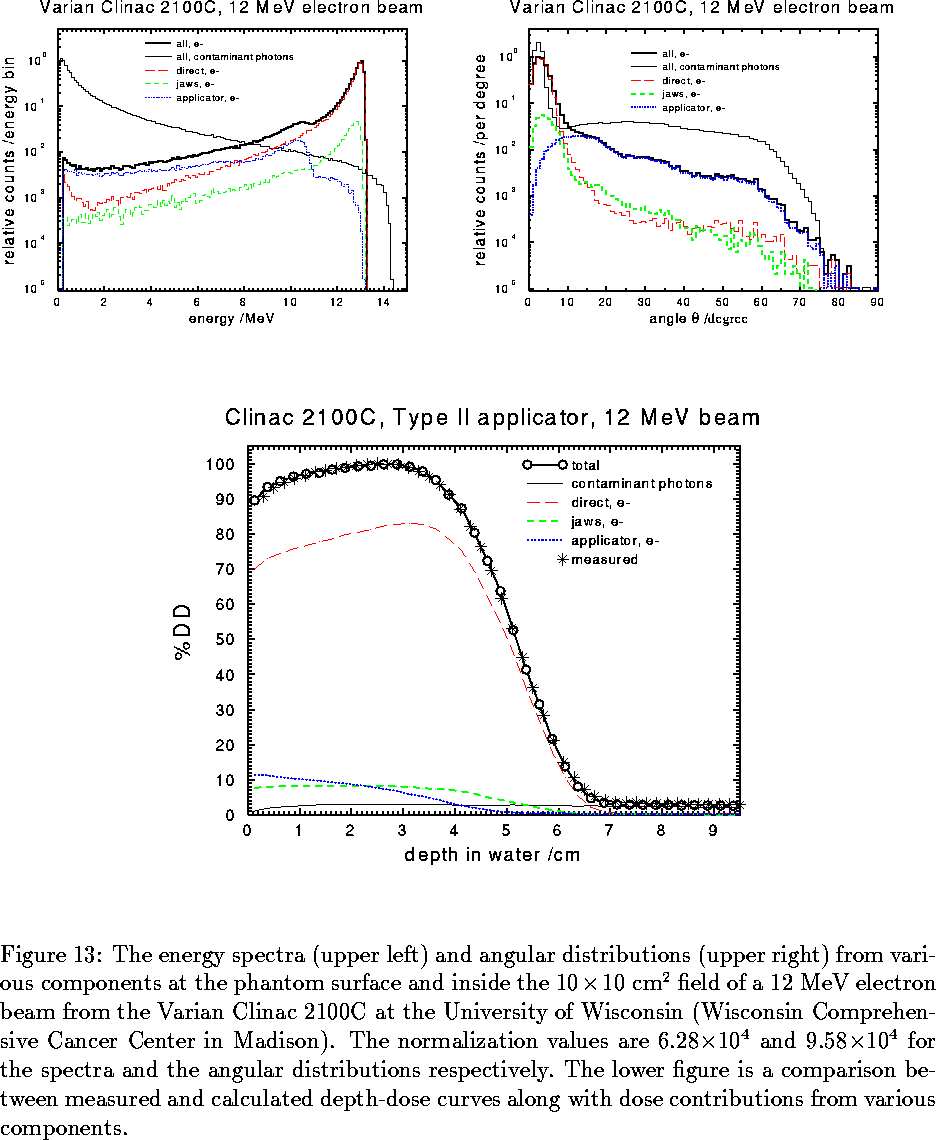

Figure 13: Clinac 2100C 12-MeV beam data. Digital: <A HREF="./clc_12_spc.html">UL</A>, <A HREF="./clc_12_ang.html">UR</A>, <A HREF="./clc_12_comp.html">L</A>


next up previous contents
Next: Figure 14: Clinac Up: Figures: Digital Data Previous: Figure 12: Clinac

Figure 13: Clinac 2100C 12-MeV beam data. Digital: UL, UR, L
